YSMSTI40CC

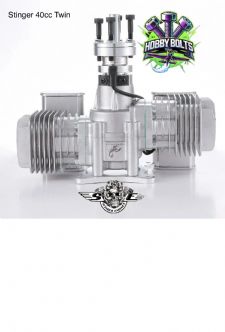

Motor Stinger 40cc Twin (Seminovo)
NEW STINGER 40cc Twin Gas Engine Parameter:
Type : 2 cycle piston valve type gasoline engine for airplane
Piston displacement Cylinder (cc) : 40cc(2.44 cu.in)
Bore x Stroke (mm): 1.26 in(32mm) x 1.02 in (26mm)
Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 6V-14V （RCEXL）
Maximum Output :4.6HP/8600rmp
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1500-8600rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
(90% high otcane unleaded gasoline, Import gas into carbon fiber installationsvalves)
Lubrication Oil : 2 cycle engine oil
Propeller : 20X10 6800rpm (Standard Two leafs prop)
Suggested Propellers: 19x8, 19x10, 20x8 & 20x10
Suggested Break-in Prop: 19X8
Spark plug: 1/4x32
Cooling System : Air Cooled
speed rang : 1500-8600rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
(90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 20X10 6800rpm (Standard Two leafs prop)
Suggested Propellers: 19x8, 19x10, 20x8 & 20x10
Suggested Break-in Prop: 19X8
Spark plug: 1/4x32
Cooling System : Air Cooled
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: 1/4x32 or equivalent
dle Speed: 1500 rpm/min
Static Thrust:
23.4 lb (10.6 kg) @ 328 ft (100 m) altitude
22.1 lb (10kg) @ 5,900 ft (1800 m) altitude
|
